ToF 3D Camera DS86

Name: ToF 3D Camera DS86
Brand: Vzense
SKU: TOFC0001
Price: 599.00 USD
Availability: InStock

Vzense SKU: TOFC0001

Please note: While we strive for accuracy in our descriptions and images, the actual color and appearance of the items may vary slightly from the photographs due to lighting conditions or varying computer monitor settings.

The Vzense DS86 ToF cameras are industrial-grade RGB-D cameras featuring Sony DepthSense ToF CMOS and Global Shutter RGB sensors for high-precision depth sensing and imaging. Ethernet Port, SONY ToF Sensor, with 2M RGB Camera

In stock

$599.00

Secure checkout

Friendly support

Hassle-free returns

Vzense DS86 & DS87: Industrial-Grade RGB-D Precision

Superior Sensing: Sony DepthSense™ ToF + Global Shutter RGB for perfect data alignment.
High-Power Illumination: 940nm 10W VCSEL with HDR for complex light handling.
Ruggedized Options: Choose IP67 (DS87) with M12 plugs for extreme conditions, or IP42 (DS86) for standard integration.
High-Speed Data: 1000Mbps Ethernet & RS485 for seamless real-time transmission.
Developer Friendly: Extensive SDK support across Windows, Linux, and Android.

Key Features:

Sony DepthSense
Millimeter-level accuracy
2MP global shutter RGB
Frame rate up to 15fps
Optional PoE+
Gigabit Ethernet transmission
FDA Class I laser safety
Adaptability to changing light conditions

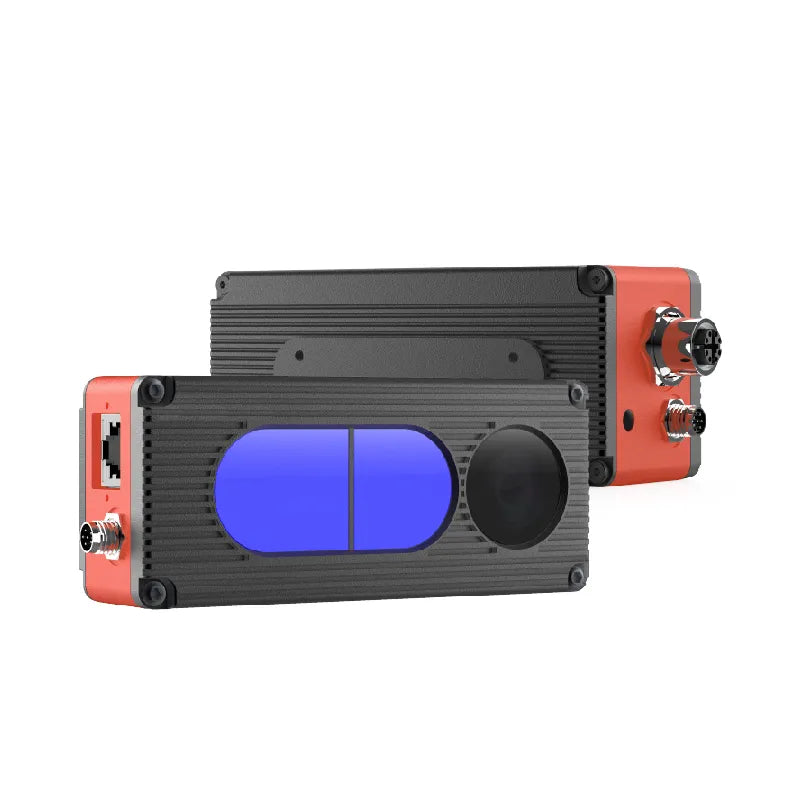

DS86 & DS87 ToF Cameras

Model	DS87	DS86
Sensor	Sony DepthSense ToF CMOS + Global Shutter RGB	Sony DepthSense ToF CMOS + Global Shutter RGB
Illumination	940nm 10W VCSEL * 2	940nm 10W VCSEL * 2
ToF Resolution/Frame Rate	640*480 dpi, Max. 15fps	640*480 dpi, Max. 15fps
ToF HDR Mode	Supported with Max. 10fps	Supported with Max. 10fps
ToF FOV	67°(H) * 50°(V)	67°(H) * 50°(V)
RGB Camera	16001200, 15fps, 70°(H) 50°(V)	16001200, 15fps, 70°(H) 50°(V)
Output Format	16bit (depth) + 8bit (IR) + JPEG (RGB)	16bit (depth) + 8bit (IR) + JPEG (RGB)
Interface	1000Mbps Ethernet	1000Mbps Ethernet
Physical Connection	M12 + M8 Aviation Plugs	RJ45 + M8 Aviation Plugs
Power Supply	PoE+ or 12V~24V (DC), <6W	12V~24V (DC), <6W
Accuracy	<1% (4mm@1m)	<1% (4mm@1m)
Working Range	0.15m to 5m	0.15m to 5m
Working Temperature	-20°C to 50°C	-20°C to 50°C
Operation System & Platform	Windows/Linux/Arm Linux/ROS1/ROS2	Windows/Linux/Arm Linux/ROS1/ROS2
SDK	C/C++, Python, C#	C/C++, Python, C#
Enclosure Rating	IP67	IP42
Conformity	CE, FCC, FDA	CE, FCC, FDA
